Multifunctional vector inverter, equipped with 32Bit RISC processor, built-in PLC, integrated safe stop (STO) and fire mode (Fire Mode), can automatically reduce the carrier according to the operating temperature, reduce heat accumulation in the inverter, and the fan automatically detects temperature Start, supports multiple communication protocols and copy modules, and the operator can be pulled out to comply with CE and UL safety certifications.

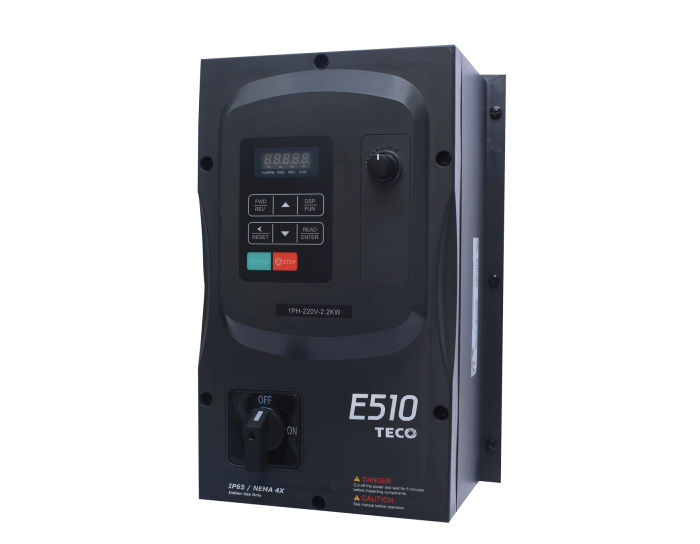

Features of TECO inverter E510: multifunctional universal inverter

TECO inverter E510 rated voltage and power range:

220V model

• Power range: 0.4~15KW single/three-phase shared

• Input voltage: 200V～240V

380V model

• Power range: 0.75～18.5KW single

• Input voltage: 380V～480V

• Protection level: IP20

• International certification: UL, CE

Features of TECO inverter E510:

• Control method: vector control, v/f control

• All series have built-in PLC for program control

• All series have built-in rs-485 communication port (rj45)

• The entire series has input and output phase loss protection functions

• All series have input terminal counting function

• Two analog inputs can be superimposed or acted independently

• Unique low current detection function

• Unique analog input monitoring function

• Unique input and output terminal status display function makes control more convenient and faster

• Unique fire mode settings

• Parameters such as voltage, current, and frequency during alarm can be viewed to facilitate troubleshooting.
